PAR36 LED Flood Screw Terminal Light | 2200LM | Replaces 150W Halogen
Handxen PAR36 LED Flood Light with Screw Terminals — Tractor, Marine & Experimental Aircraft
Replace a standard PAR36 sealed-beam lamp with the Handxen PAR36 LED Flood Light with Screw Terminals. This Flood version delivers 2,200 lm with 10,500 cd center intensity and an approximately ±70° horizontal beam for broad work-area illumination. It uses upgraded 18-LED technology, 5700K (±500K) white light with CRI approximately 75, a die-cast 6030 aluminum housing, and IP67 sealed construction. The screw-terminal connection is intended for compatible PAR36 installations on tractors, marine work lights and other equipment. For aircraft, use on experimental aircraft only.
Built for equipment owners who are tired of repeatedly replacing short-life stock PAR36 lamps. In some demanding applications, original lamps may last only around 24 hours. This LED upgrade is designed for long service life and uses low-EMI/RFI electronics to help avoid radio or intercom interference. Actual service life depends on operating conditions, installation and electrical-system health.
⚡ Why Upgrade to the Handxen PAR36 LED?
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Power Consumption | 15W actual draw / 18W nominal rating |
| Luminous Output | Flood: 2,200 lm |
| Color Temperature | 5700K (±500K) white |
| Input Voltage | DC 9V – 30V (12V & 24V compatible) |
| Terminal Type | Screw terminals; confirm terminal layout and polarity before installation |
| LED Chips | Upgraded LED technology |
| Housing Material | Die-cast 6030 Aluminum |
| IP Rating | IP67 (Dustproof + Waterproof) |
| Color Rendering Index | CRI approximately 75 |
| Center Intensity | Flood: 10,500 cd |
| Transient Voltage Tolerance | 36V |
| EMC | CISPR25 Class 3 |
| Radio Interference | Upgraded low-EMI/RFI design; verified customer feedback reports no radio or intercom interference |
| Beam Type | Flood: horizontal ±70° |
| Dimensions | 4.5 inch / 111.6 × 43.4 mm |
| Operating Temperature | -40°C to +85°C |
| Lifespan | 50,000+ hours |
| Weight | 250g |
| Certifications | SAE-J2895, CE, RoHS |
| Warranty | 2-Year Manufacturer Warranty |
🚜 Compatible Applications & Vehicles
🌾 Agriculture & Heavy Equipment
John Deere, Kubota, New Holland, Case IH tractors, combines, harvesters, forklifts, excavators, snowblowers
✈️ Aviation

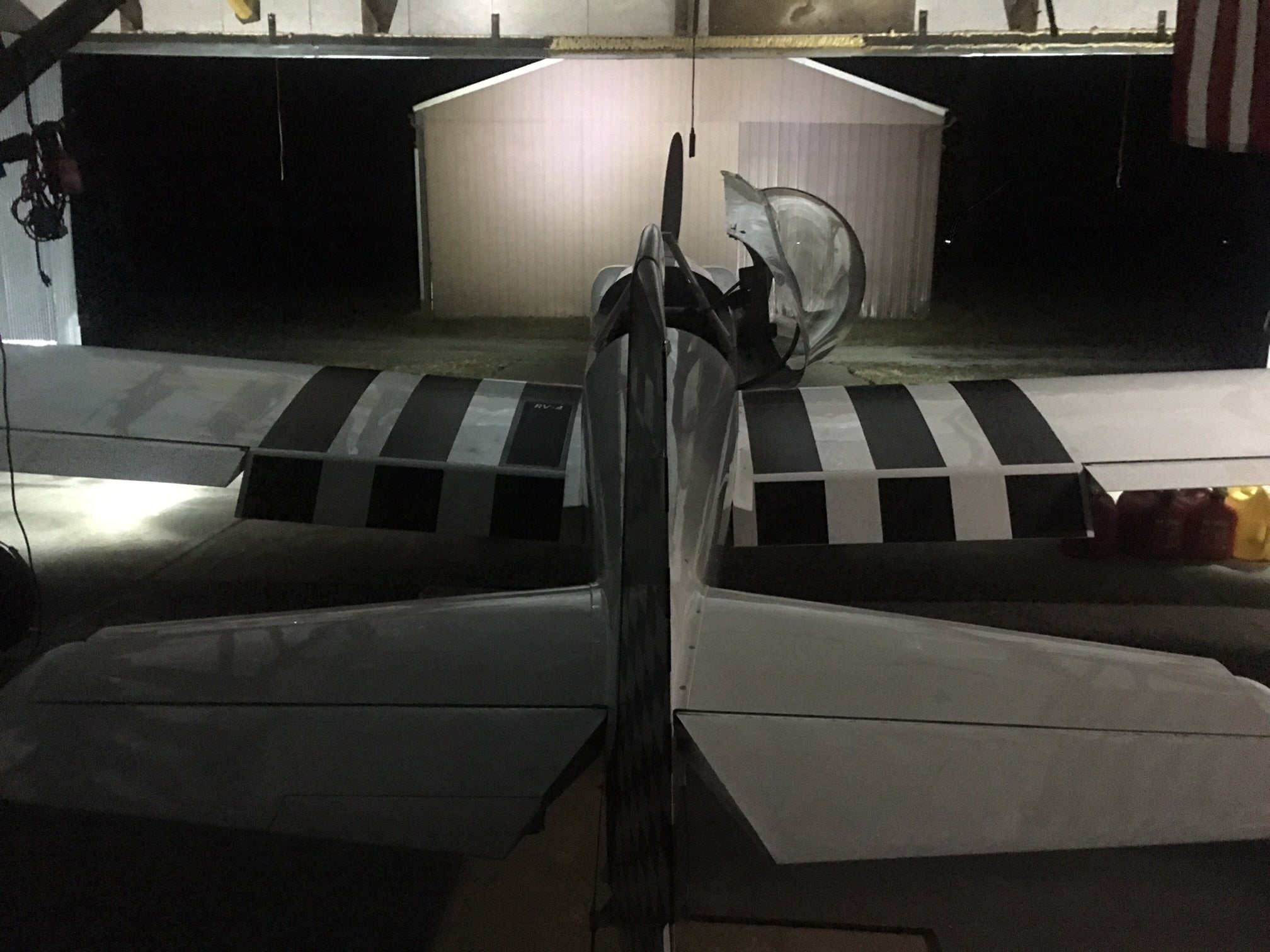

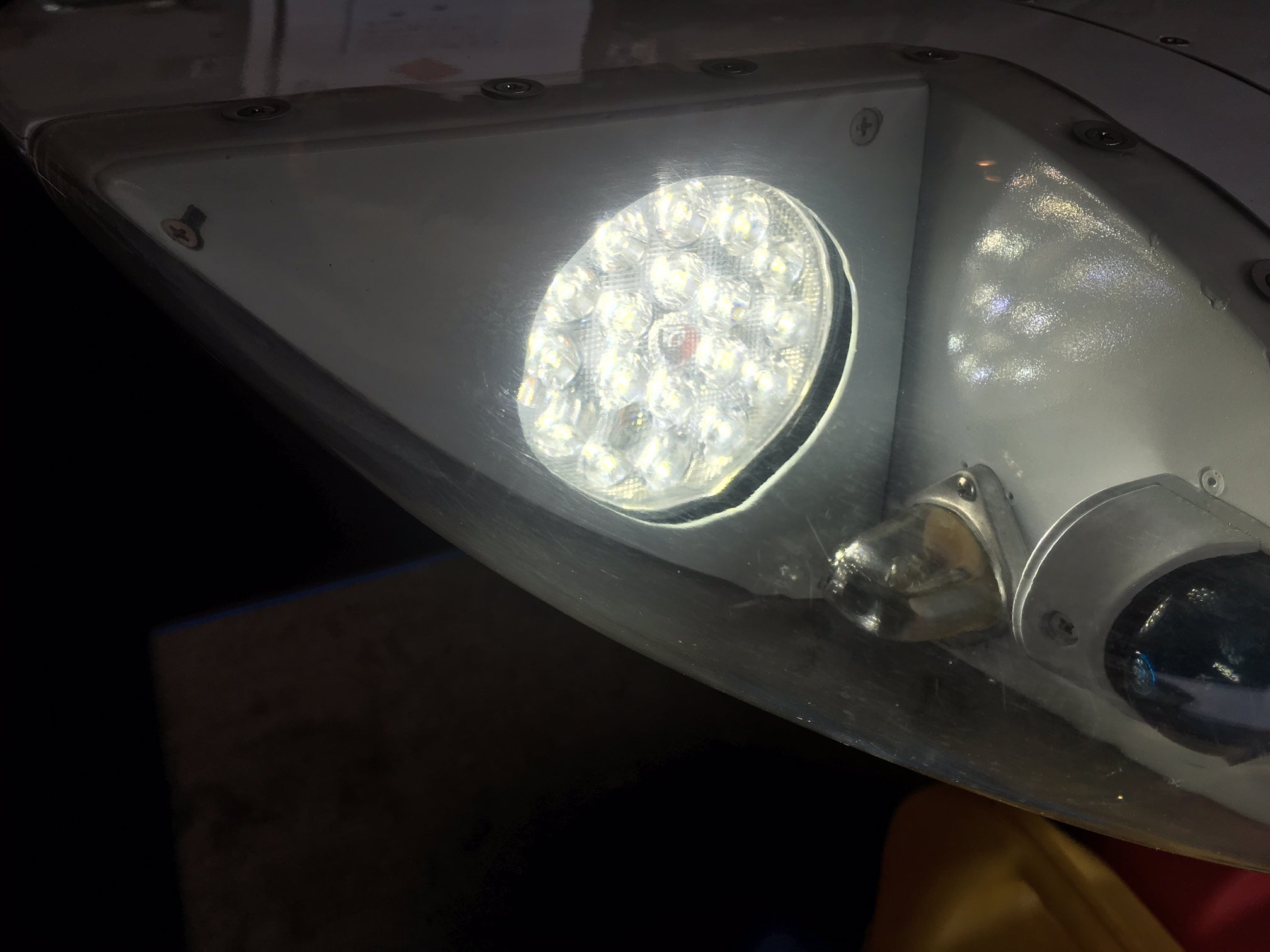

Experimental aircraft applications only. Verify mounting, wiring, beam pattern and applicable requirements before installation.
⛵ Marine & Boating
Boats, sailboats, sportfish, pontoons, docking lights, deck lights and RVs. Not represented as a certified navigation light.
🏔️ Off-Road & Automotive
Jeep Wrangler, Harley Davidson, trucks, ATVs, powersports, 4×4 off-road, golf carts, railroad
⛏️ Industrial & Mining
Mining equipment, buses, emergency egress lighting, industrial vehicles, medical spotlighting
🏡 Landscape & Architectural
Landscape spotlights, architectural accent lighting, outdoor flood lighting, low-voltage garden lighting
🔢 PAR36 Replacement Reference Numbers
Verify the PAR36 mounting size, terminal layout and polarity before ordering. These reference numbers do not by themselves confirm fitment for every screw-terminal installation.
Standard: 4313 · 4416 · 4505 · 4509 · 4587 · 4591 · 4593 · 4594 · 4595 · 4596 · 4623 · 4626 · 4627
Quartz Halogen: Q4631 · Q4632 · Q4626 · Q4594 · Q5587 · Q5596 · 55-2477-1
John Deere OEM: AR48723 · AR85263 · AR85264 · AR93335

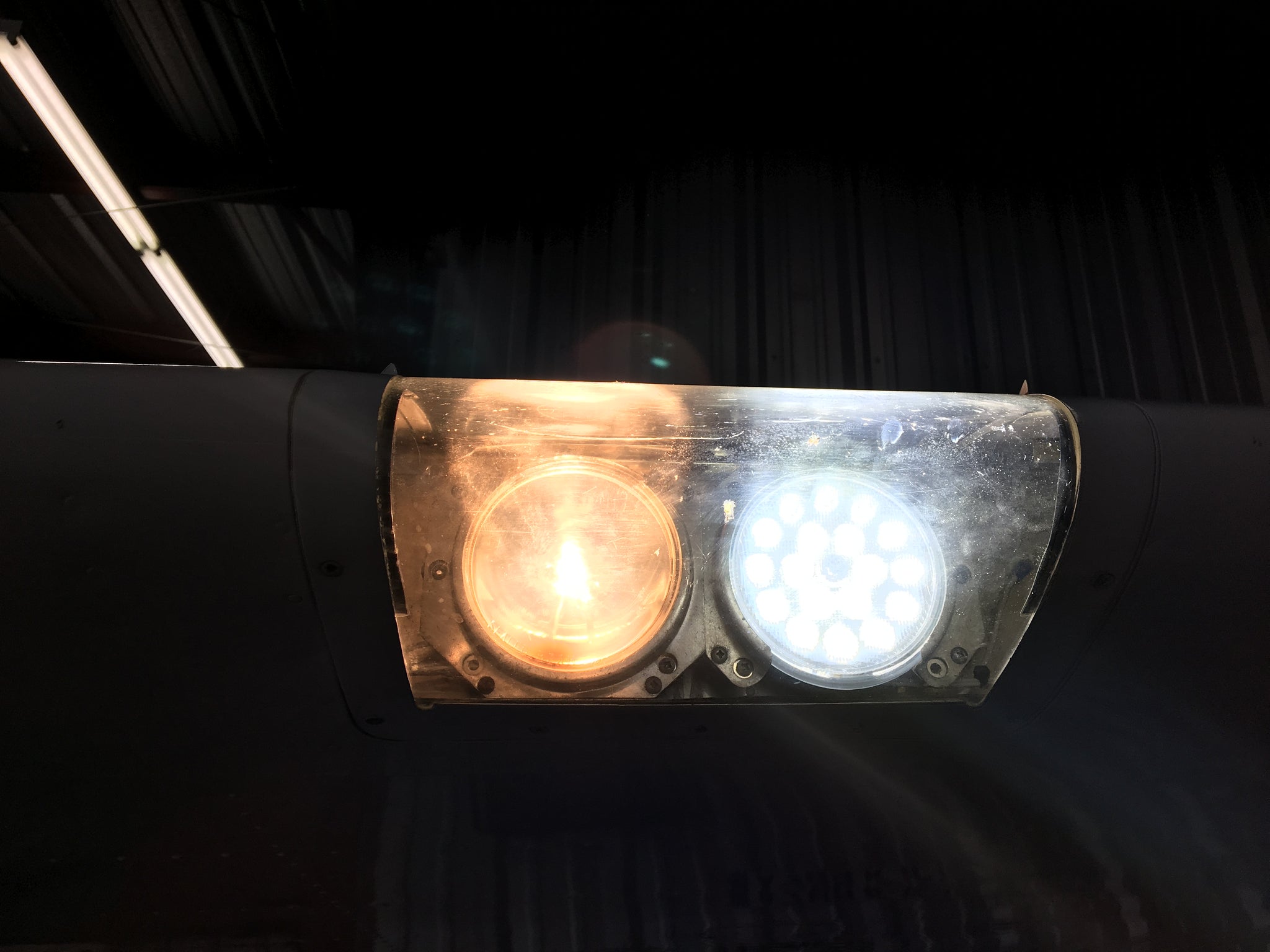

📊 LED vs Halogen: Side-by-Side Comparison
| Feature | Handxen PAR36 LED | Standard Halogen |
|---|---|---|
| Brightness | Flood 2,200 LM ✅ | 600 LM |
| Power Draw | 15W actual / 18W nominal ✅ | 50–100W |
| Lifespan | 50,000 hrs ✅ | 300–1,500 hrs |
| Vibration Resistance | Excellent ✅ | Poor |
| Heat Output | Low ✅ | Very High |
| Instant Full Brightness | Yes ✅ | Yes |
| Wiring Modification | Screw-terminal connection; verify terminal layout | N/A |
🔧 Installation Guide (5 Steps)
- Turn off power — Switch off master switch or disconnect vehicle battery.
- Remove the old bulb — Unscrew or unclip the existing PAR36 halogen from the socket.
- Connect the screw terminals — Connect the positive (+) and negative (−) terminals as marked on the LED unit.
- Secure in housing — Insert the LED unit into the existing PAR36 socket and fasten.
- Test — Power on and verify full brightness. Done!
⚠️ Note: Ensure correct polarity. Reverse polarity will not damage the unit but the light will not illuminate. For flood beam versions, orient correctly during installation for proper rectangular light spread.
About the Handxen PAR36 LED Sealed Beam Light
The Handxen PAR36 LED Flood Light with Screw Terminals is a sealed-beam replacement designed for standard 4.5-inch PAR36 mounting applications. This screw-terminal version is intended for compatible terminal installations; verify fitment, terminal layout, polarity and wiring before ordering.

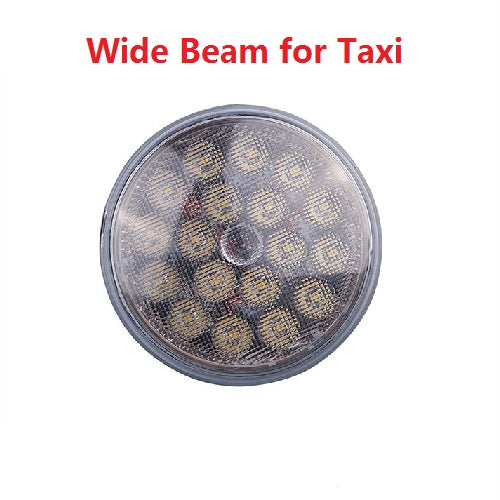

The upgraded design uses 18 LED emitters and engineered Flood optics. It delivers 2,200 lm with 10,500 cd center intensity and an approximately ±70° horizontal beam. At 15W actual power draw (18W nominal rating), the light provides 5700K (±500K) white output with CRI approximately 75.
The housing is constructed from die-cast 6030 aluminum with parallel plate heat sinks that rapidly dissipate thermal energy, keeping operating temperatures within safe limits even under prolonged continuous use. An IP67 dust and waterproof rating ensures the sealed beam withstands rain, pressure washing, mud, snow, and temporary water immersion — conditions routinely encountered on farm equipment and marine applications.
With a rated lifespan exceeding 50,000 hours, vibration resistance superior to incandescent technology, and a wide operating voltage range of DC 9V–30V, the Handxen PAR36 LED is the permanent solution to recurring halogen bulb replacements. It meets SAE-J2895, CE, and RoHS standards and comes with a 2-year manufacturer's warranty.
❓ Frequently Asked Questions
What halogen bulbs does this replace?
This is designed as a PAR36 replacement reference for bulb numbers 4313, 4416, 4505, 4509, 4587, 4591, 4593, 4594, 4595, 4596, 4623, 4626, 4627 and many others. It fits standard 4.5-inch PAR36 mounting applications, but confirm the screw-terminal layout, polarity and wiring before installation.
Will this work on my John Deere tractor?
It can be used where the PAR36 mounting size, voltage and wiring are compatible. The listed John Deere OEM numbers are reference numbers; verify the installation before ordering.

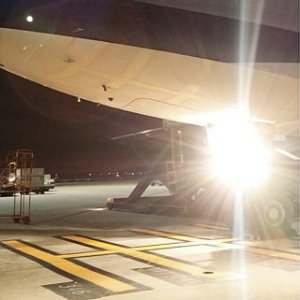

Is this suitable as an aircraft landing light?
For experimental aircraft only. This product is not represented as FAA/PMA approved. Confirm the installation requirements with a qualified aviation professional before use.
Will this light interfere with my radio?
The upgraded electronics use a low-EMI/RFI design to help avoid interference with radio reception. Verified customer feedback reports no radio or intercom interference. Correct wiring, grounding and installation are still important in every vehicle or vessel.
Can I use this on a 24V system?
Yes. The wide input voltage range of DC 9V–30V means it is compatible with both 12V and 24V electrical systems found in trucks, tractors, heavy machinery, and marine vessels.
Is this a Flood or Spot beam?
This listing is the Flood version. It provides a wide horizontal beam of approximately ±70°, 2,200 lm and 10,500 cd center intensity—ideal for work lighting on tractors and deck lighting. For aircraft, use on experimental aircraft only; this product is not represented as a certified navigation light.
📦 What's in the Box
- 1 × Handxen PAR36 LED Flood Sealed Beam Light with Screw Terminals (5700K (±500K))
- Screw-terminal connection; no bare-wire pigtail is included
- Installation guide
- 2-Year manufacturer warranty card
🚚 Shipping Information
USA orders: Shipped from US local warehouse. Delivery in 2–5 business days.
International orders: Shipped via DHL / UPS / FedEx / TNT or special line.
Stop replacing bulbs. Switch to Handxen LED once.
15W actual draw · 18W nominal · Flood 2,200LM · ±70° horizontal beam · 5700K (±500K) · CRI approx. 75 · IP67 · 2-Year Warranty
