Handxen PAR46 LED Spotlight – H5001 H7635 Unity S04/S6 Replacement | 36W 6000K
Upgrade your dim, yellowed halogen sealed-beam spotlight to high-intensity LED. The Handxen PAR46 LED spotlight is a direct plug-and-play replacement for H5001, H7635, H5006, 4000, 4040, and PAR46 halogen sealed-beam bulbs — delivering 3,000+ lumens of crisp 6000K daylight-white output at only 36W. Engineered with a heavy-duty screw terminal base, 30° focused spot beam, and 9–60V DC universal input, this LED fits most Unity S04/S6 post-mount spotlight housings on police interceptors, tractors, marine vessels, and utility vehicles. Built to last with IP67 waterproofing and a 30,000+ hour lifespan.
🔦 Why Choose Handxen PAR46 LED Spotlight?
|
💡 3X Brighter Than Halogen 12 high-power Epistar LED chips deliver 3,000+ lumens of 6000K pure white light. Dramatically improves nighttime visibility for patrol, search, and off-road use. |
⚡ 65% Less Power Draw Only 23W effective consumption vs. 100W halogen. Draws ~3 amps — prevents battery drain and eliminates heat damage to plastic housings. |
|
🔌 Direct Sealed-Beam Replacement Standard 5.75" PAR46 form factor with screw terminal base. Drops into your existing Unity S04/S6 housing — simple wiring splice, no housing modifications needed. |
🛡️ Built for Tough Conditions IP67 waterproof rated. Powder-coated aluminum heatsink + shatterproof polycarbonate lens. Shock, vibration, and corrosion resistant. Works from -40°F to 185°F. |
|
🌡️ 9–60V Universal Input Compatible with 12V cars/trucks, 24V heavy equipment, and marine electrical systems. One bulb fits virtually any vehicle. |
⏱️ 30,000+ Hour Lifespan Solid-state LED technology — no fragile filament. Outlasts halogen bulbs by 10x or more. Install it once and forget about replacements. |
📋 Technical Specifications
| PAR46 LED Spotlight / Searchlight | |
|---|---|

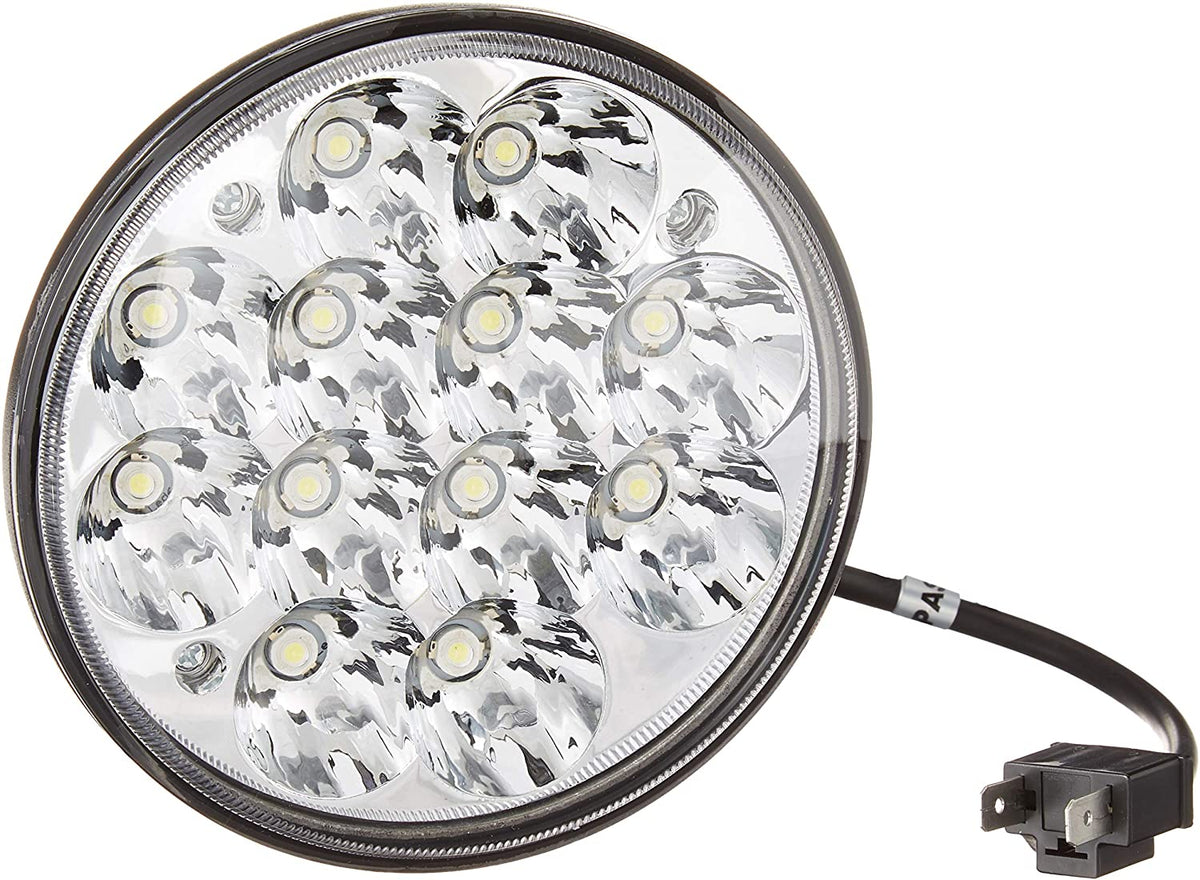

| LED Chips | 12 × Epistar 3W High-Intensity LEDs |
| Rated Power | 36W rated / 23W effective consumption |
| Luminous Output | 3,000+ lumens (2,260 raw lumens) |
| Color Temperature | 6000K–6500K (Xenon White) |

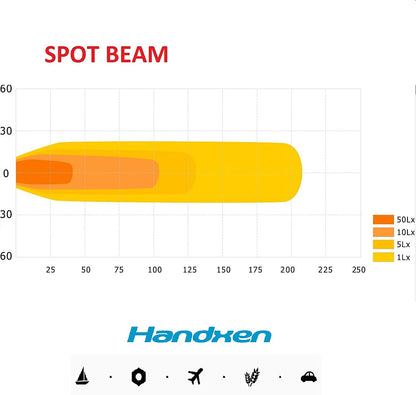

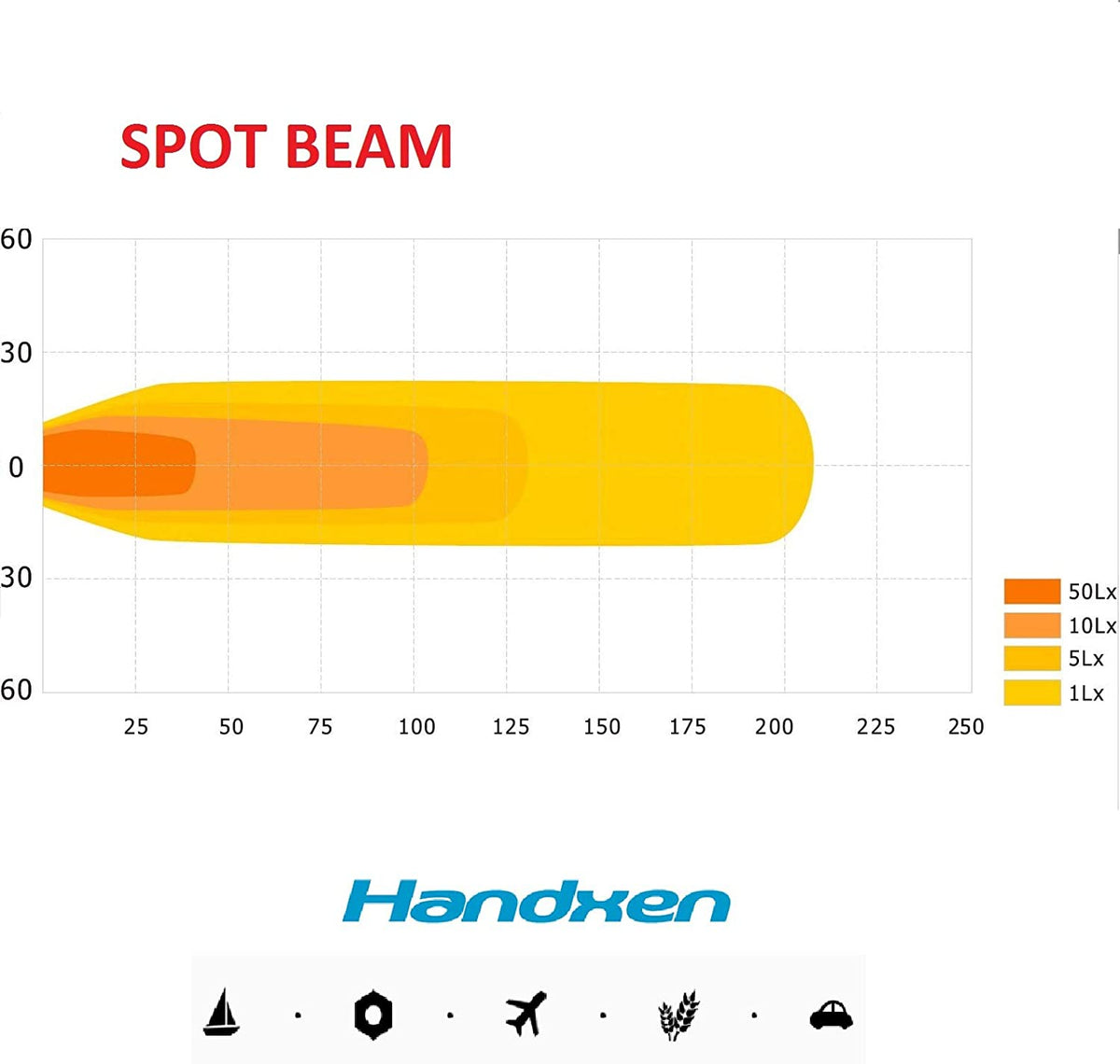

| Beam Pattern | 30° Narrow Spot Beam |
| Input Voltage | 9–60V DC (12V, 24V, 48V systems) |

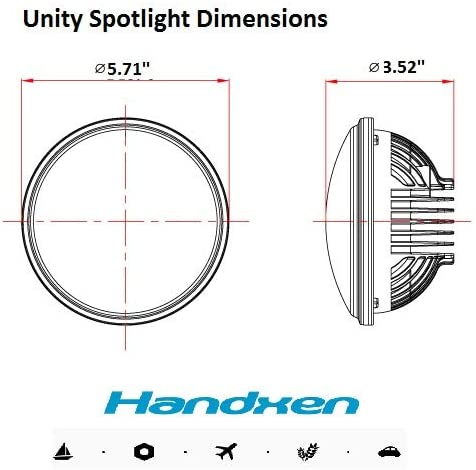

| Bulb Size | 5.75" (PAR46 sealed-beam format) |
| Connector | Screw Terminal Base |
| Lens Material | PMMA (shatterproof polycarbonate) |

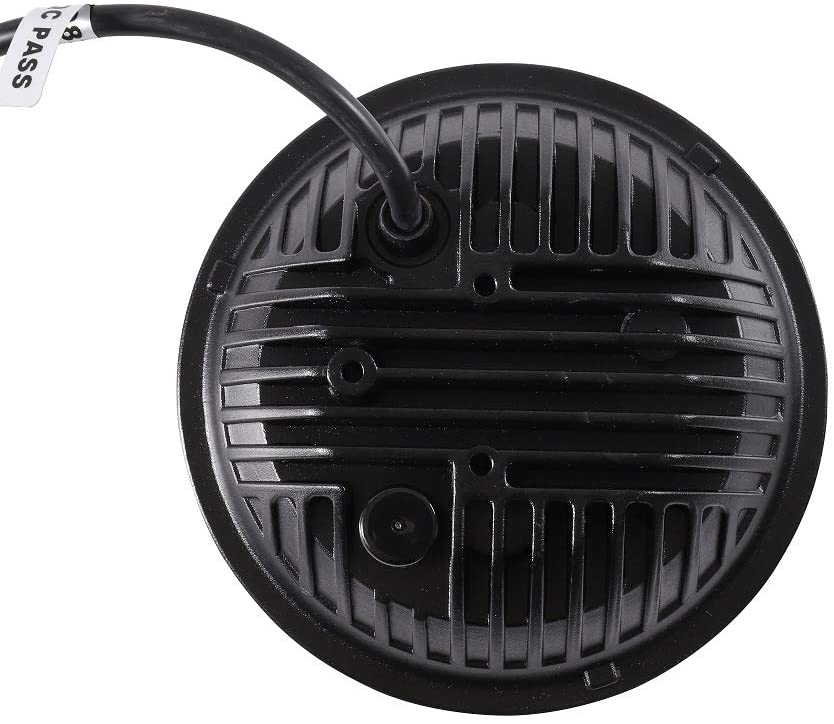

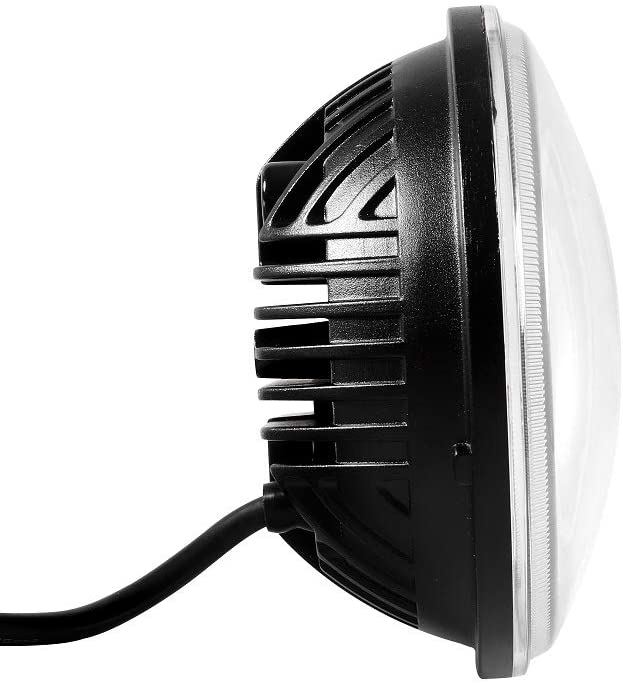

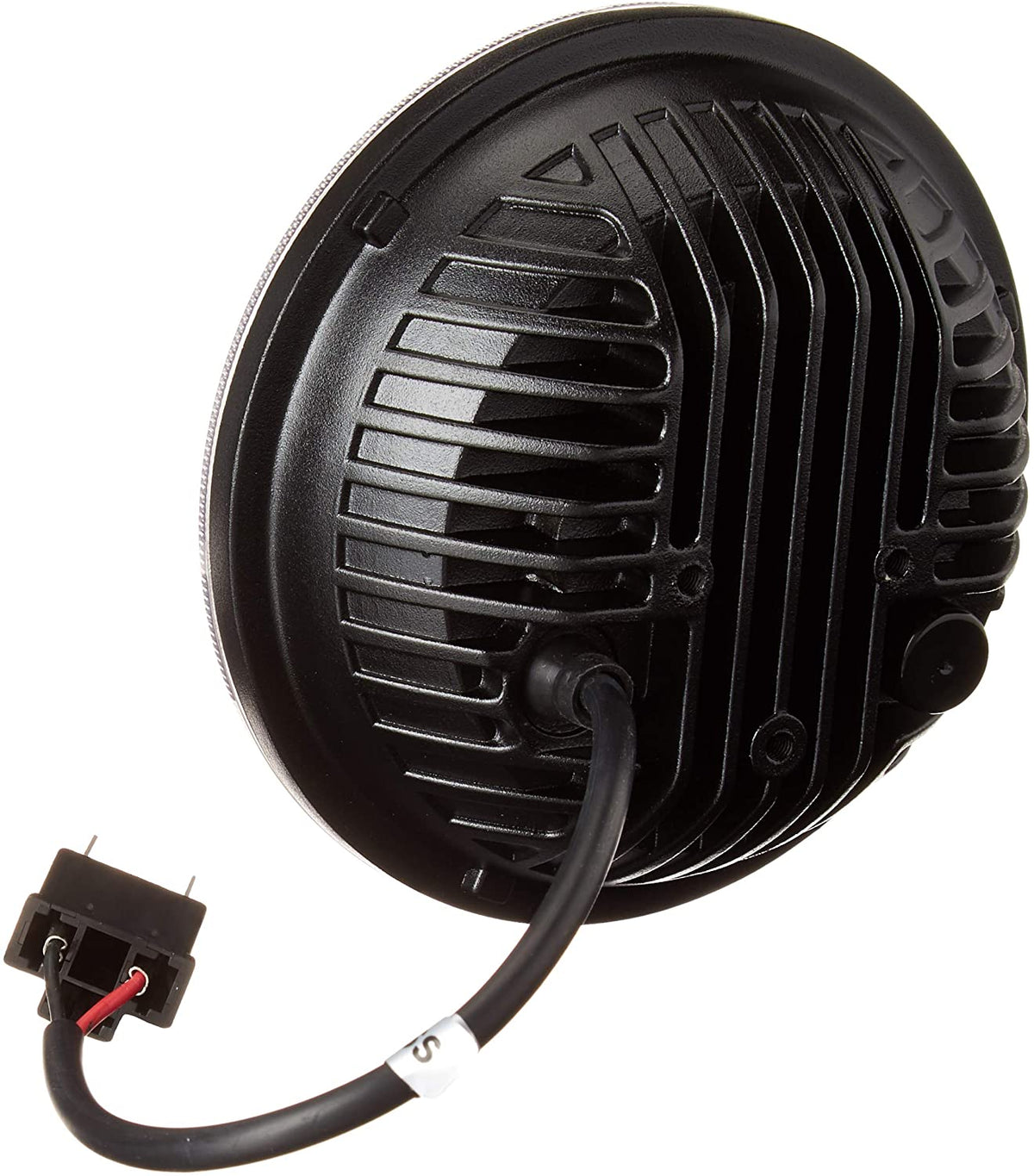

| Housing | Black powder-coated aluminum heatsink |
| Waterproof Rating | IP67 (dustproof + waterproof) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Lifespan | 30,000+ hours |
🔄 Direct Replacement For:
PAR46 | H5001 | H7635 | H5006 | H4001 | 4000 | 4040 | 5506 | 5009 | H5006LL | H5009 | H5001XV
Fits: Unity S04/S6 spotlight housings, post-mount spotlights, 5.75" sealed-beam fixtures, tractor headlamps, marine searchlights
🚔 Vehicle & Application Compatibility
Compatible with a wide range of vehicles and equipment using PAR46 / H5001 / H7635 sealed-beam spotlights, including: 1998–2011 Ford Crown Victoria Police Interceptor (CVPI P71) — 2007–2014 Chevrolet Tahoe (driver-side post spotlight) — Ford 8N tractor and other agricultural equipment — Unity S04 & S6 post-mount housings — utility trucks & bucket trucks — marine searchlights — off-road vehicles — Baron, Travel Air, Bonanza inboard wing pod lights — 6" halogen off-road driving light housings.
🔧 Quick Installation Guide
Simple 4-step wiring — no housing modification needed:

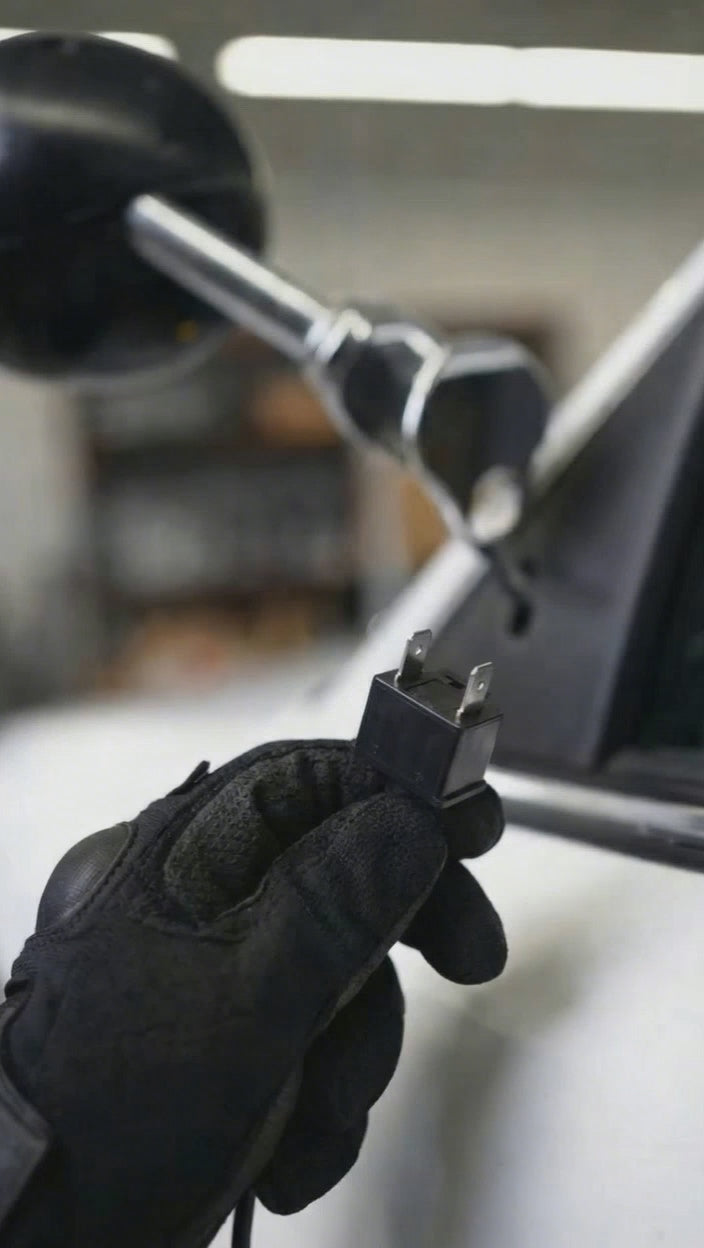

| Step 1 | Cut the original 2-pin spade connector from the old halogen bulb. |
| Step 2 | Add a new spade connector to the black ground wire. |
| Step 3 | Snip the terminal lug wire off the halogen bulb and splice it to the red positive wire. |
| Step 4 | Plug in the connections and test. Installation complete! |
❓ Frequently Asked Questions
Q: Will this PAR46 LED fit my Unity S04 or S6 spotlight housing?
A: Yes. This is a direct sealed-beam replacement designed for Unity S04 and S6 post-mount spotlight housings. Standard 5.75" PAR46 form factor with screw terminal base. Some older housings may require minor terminal adjustment for optimal contact.
Q: What halogen bulbs does this replace?
A: Directly replaces PAR46, H5001, H5006, H4001, 4000, 4040, 5506, 5009, H5006LL, H5009, H5001XV, and H7635 sealed-beam halogen bulbs — no housing modifications needed.
Q: Does this work on 12V and 24V systems?
A: Yes. It operates on 9–60V DC input, making it universally compatible with 12V cars, 24V heavy equipment, and marine electrical systems.
Q: Does this fit the Ford Crown Victoria Police Interceptor spotlight?
A: Yes. Direct fit for the 1998–2011 Ford Crown Victoria Police Interceptor (CVPI P71) stock Unity spotlight, and the 2007–2014 Chevrolet Tahoe driver-side post spotlight.
Q: How difficult is the installation?
A: Very simple. It requires a basic 4-step wiring splice — cut the old spade connector, add new connectors to ground and positive wires, plug in and test. No housing modifications needed. Most installations take under 15 minutes.
