Handxen PAR46 LED Sealed Beam 36W 3200LM Osram – Spot & Flood 6000K

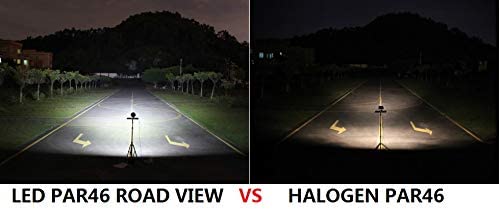

Upgrade your dim halogen sealed-beam to the Handxen PAR46 LED — a high-performance 36W LED replacement delivering 3,200 lumens of crisp 6000K daylight-white output. Built with genuine Osram LED chips and custom-designed refraction beam masks, this light is dramatically brighter than 400W halogen — even visible in broad daylight. Available in Spot (narrow beam) and Flood (wide beam) configurations with a pigtail connector, it directly replaces PAR46 halogen sealed beams including models 4522, 4551, 4553, 4570, 4571, 4572, 4580, 4581, 4582, and 4635. Ideal for tractors, off-road vehicles, aircraft, marine searchlights, mining equipment, and landscape lighting. SAE certified with a 2-year manufacturer warranty.
🔦 Why Choose Handxen PAR46 LED?
|

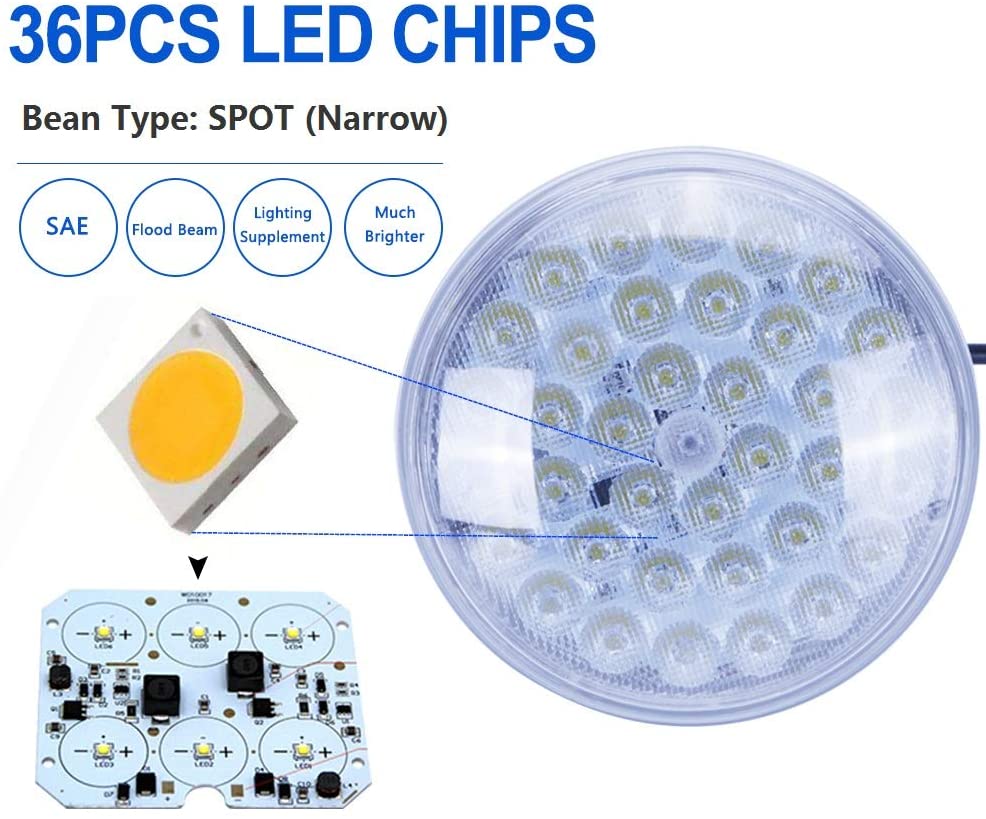

💡 3,200LM Osram Chips 36 genuine Osram 1W LEDs with custom refraction beam masks. Dramatically brighter than 400W halogen — visible even in daytime. |
⚡ 80% Less Power Only 36W vs. 400W halogen. Significantly reduces electrical load and eliminates heat damage to fixtures. |
|
🔌 Spot or Flood Beam Choose narrow spot for searchlight/landing light use, or wide flood for work light/landscape applications. Both include pigtail connector. |
🛡️ IP67 Rugged Build Diecast 6030 aluminum heatsink + anti-corrosion PC lens. Dustproof, waterproof, shockproof. Works from -40°F to 185°F. |
|
🌡️ 9–32V Universal Compatible with 12V automotive, 24V heavy equipment, and 28V aviation systems. One lamp fits virtually any application. |
✅ SAE Certified SAE & RoHS compliant. 30,000+ hour lifespan. Backed by Handxen 2-year manufacturer warranty. |

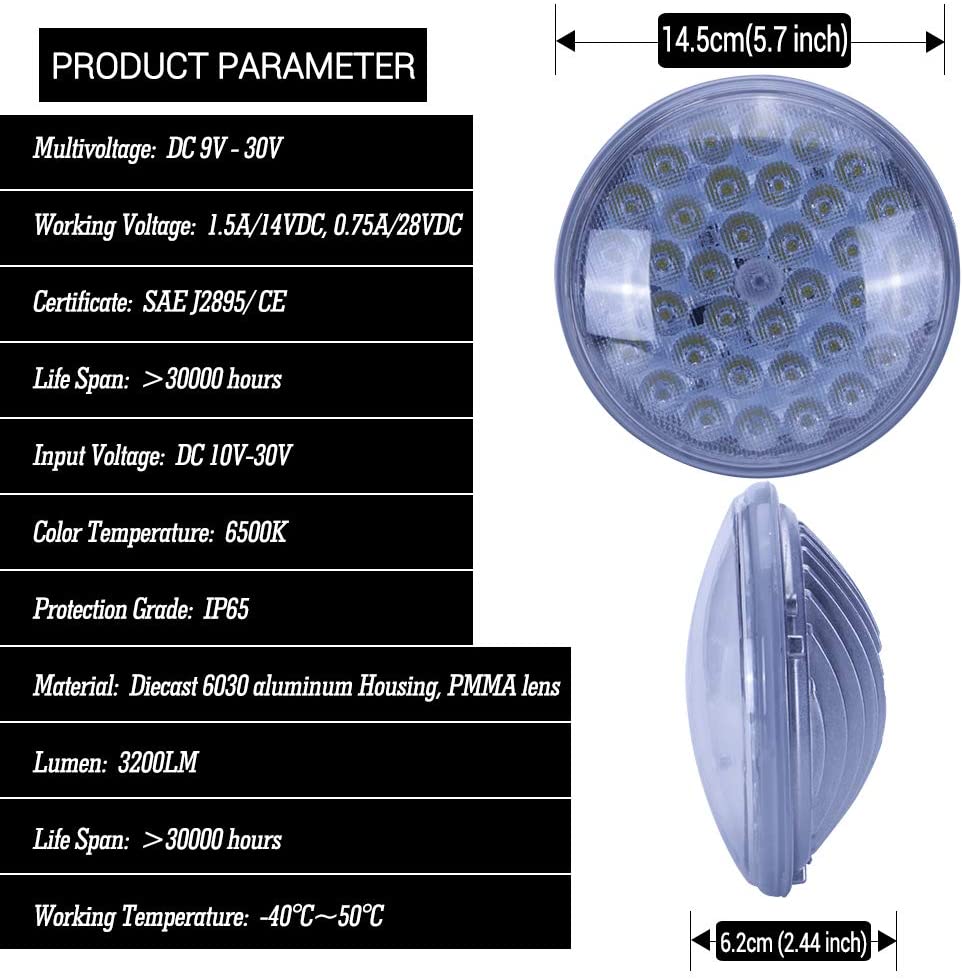

📋 Technical Specifications
| PAR46 LED Sealed Beam (Osram) | |
|---|---|

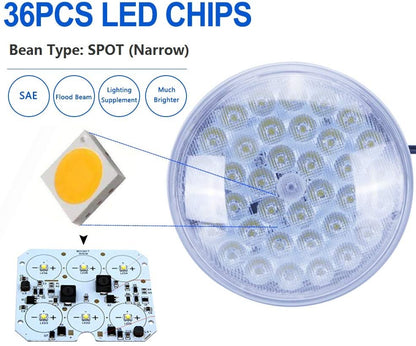

| LED Chips | 36 × Osram 1W High-Intensity LEDs |

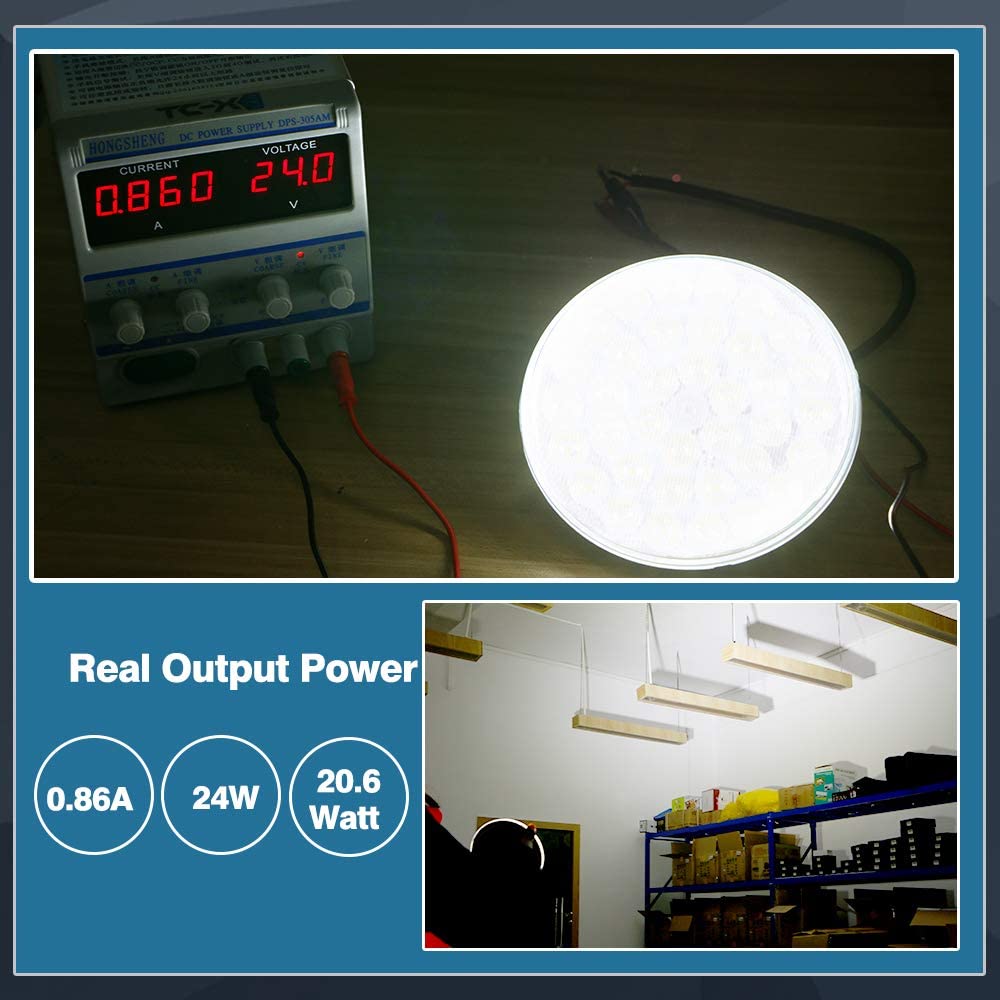

| Total Power | 36W |
| Luminous Output | 3,200 lumens |
| Color Temperature | 6000K–6500K (Xenon White) |
| Beam Pattern | Spot (Narrow) or Flood (Wide) — select at checkout |
| Input Voltage | DC 9–32V (12V / 24V / 28V systems) |

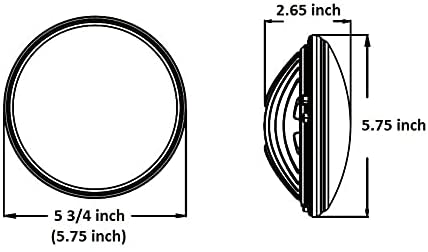

| Bulb Size | 5.75" (PAR46 sealed-beam format) |
| Connector | Pigtail wire (14.5" cable length) |

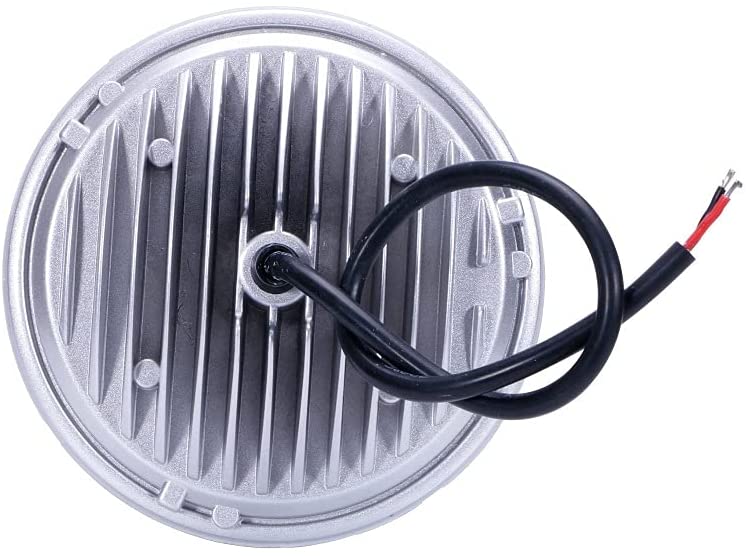

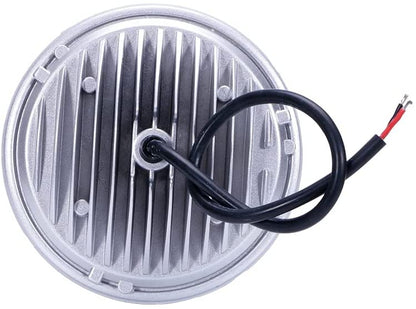

| Housing | Silver diecast 6030 aluminum |
| Lens | Anti-corrosion clear polycarbonate (PC) |
| Waterproof Rating | IP67 |
| LED Junction Temp | 120–140°F |
| Lifespan | 30,000+ hours |
| Certification | SAE, RoHS |
| Unit Weight | 44 lbs |
🔄 Direct Replacement For:
4522 | 4551 | 4553 | 4570 | 4571 | 4572 | 4580 | 4581 | 4582 | 4635
Fits: All standard 5.75" PAR46 sealed-beam fixtures, tractor headlamps, off-road lights, aircraft landing/taxi lights, marine searchlights, landscape lighting fixtures
🚜 Application Compatibility
This versatile PAR46 LED fits a wide range of applications: tractor headlights (Ford 8N, John Deere, Kubota, Case IH) — off-road driving lights — aircraft landing & taxi lights (experimental, Baron, Travel Air, Bonanza inboard wing pods) — marine searchlights & spotlights — mining & heavy equipment lights — landscape & outdoor lighting — Unity spotlight housings — bucket trucks & utility vehicles — motorcycle headlights — 6" halogen off-road driving light housings.
📦 Package Options
| Option | Beam Pattern | Best For |
|---|---|---|
| Spot Beam – Pigtail | Narrow angle (long throw) | Searchlights, aircraft landing, spotlight |
| Flood Beam – Pigtail | Wide angle (area coverage) | Work lights, landscape, off-road driving |
🔧 Quick Installation Guide
Simple 4-step wiring — no housing modification needed:
| Step 1 | Cut the original 2-pin spade connector. |
| Step 2 | Attach a new spade connector to the black ground wire. |
| Step 3 | Cut off the terminal lug wire from the halogen bulb and splice it to the red positive wire. |
| Step 4 | Plug in the connections and test. Installation complete! |
❓ Frequently Asked Questions
Q: What halogen bulbs does this PAR46 LED replace?
A: Directly replaces PAR46 halogen models 4522, 4551, 4553, 4570, 4571, 4572, 4580, 4581, 4582, and 4635. Fits any standard 5.75" sealed-beam fixture.
Q: What's the difference between the Spot and Flood versions?

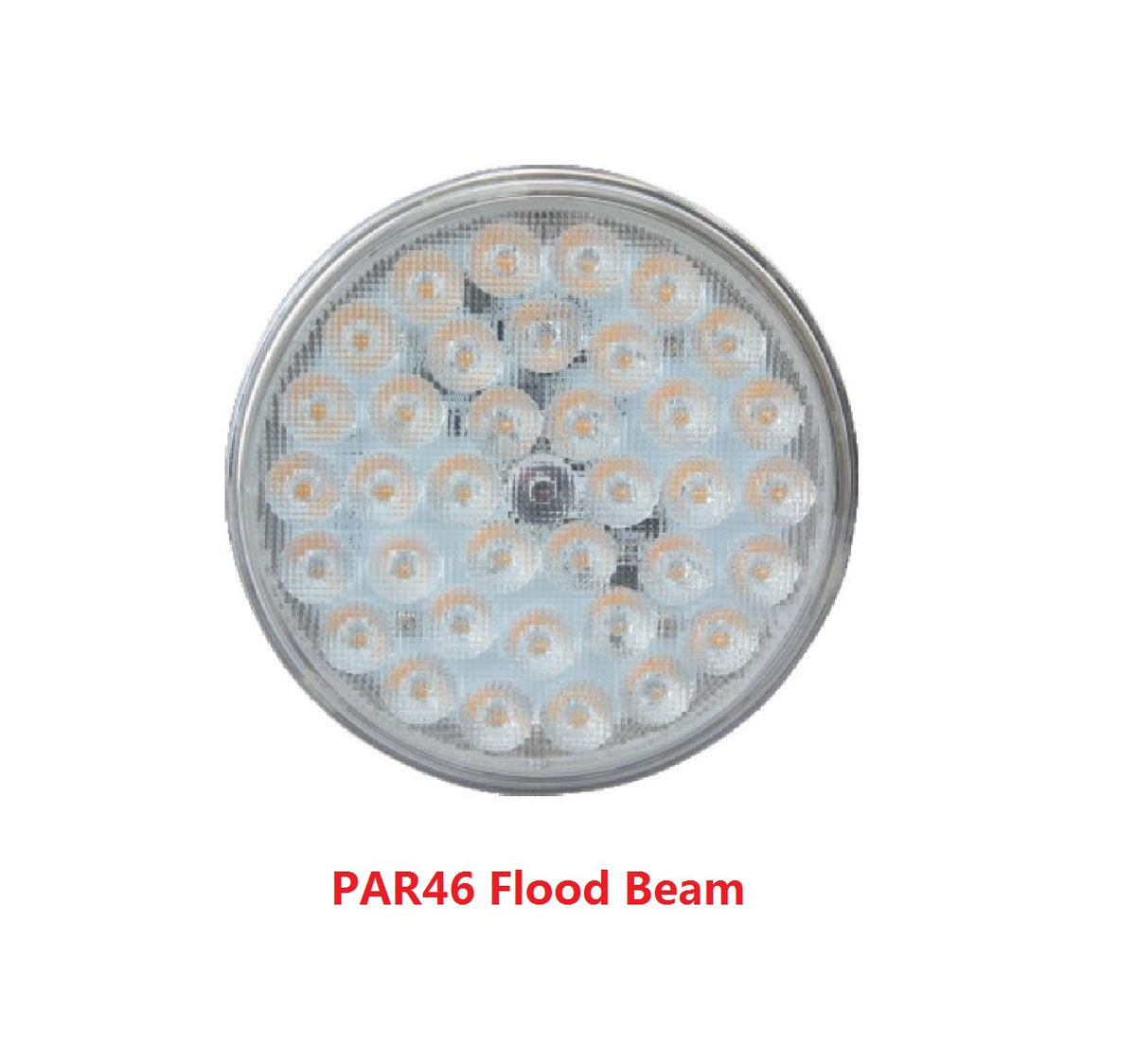

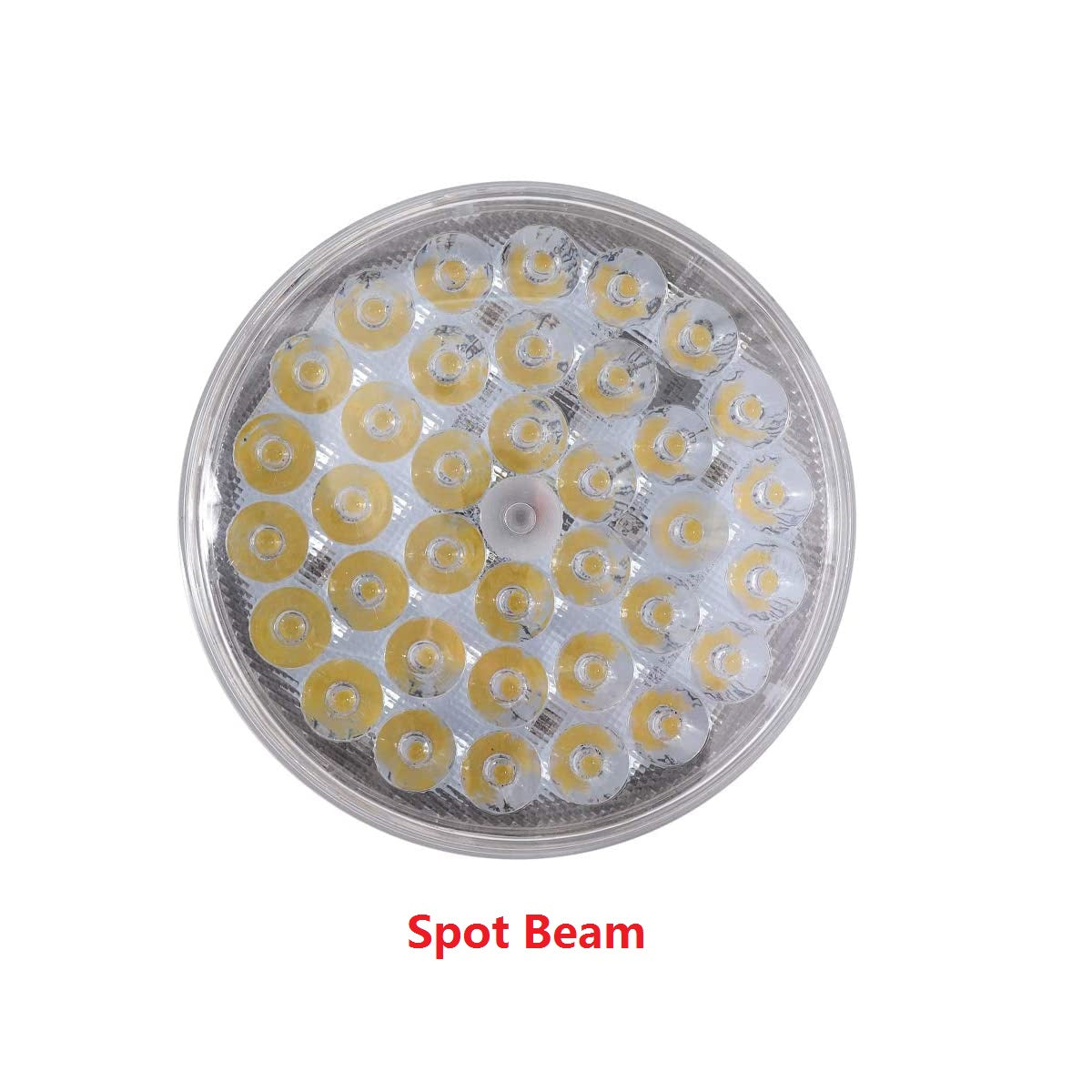

A: Spot beam has a narrow pattern for long-distance illumination (searchlights, landing lights). Flood beam has a wider pattern for area coverage (work lights, landscape, off-road).
Q: Does this work on 12V and 24V systems?
A: Yes. Operates on DC 9–32V — compatible with 12V automotive, 24V heavy equipment, and 28V aviation systems.
Q: Is this waterproof?
A: Yes. IP67 rated with diecast aluminum housing and anti-corrosion PC lens. Designed for harsh outdoor environments.
Q: Can this be used as an aircraft landing light?
A: Yes. Commonly used on experimental aircraft as a landing/taxi light. SAE certified with genuine Osram chips for reliable high-intensity illumination.
About Handxen
Founded in 2009, Handxen specializes in high-performance LED lighting for automotive, aviation, marine, and agricultural applications. Based in City of Industry, CA with R&D facilities in China.
🏆 2-Year Manufacturer Warranty
If you experience any defect within 24 months, contact us at sales@handxen.com for a hassle-free replacement.
